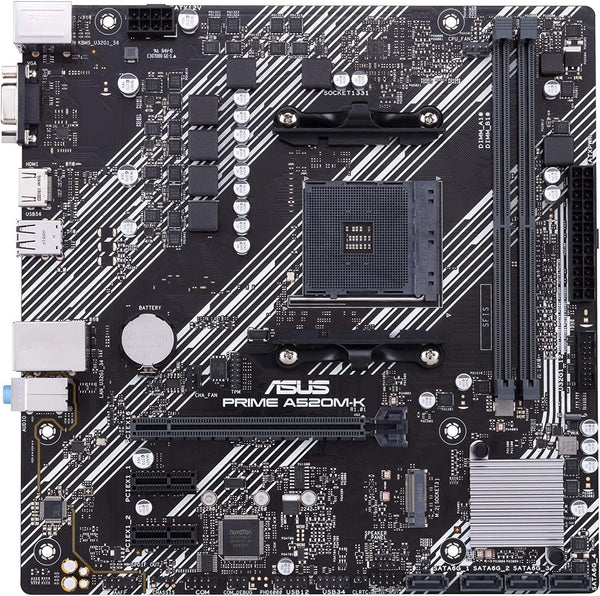

Name: ASUS PRIME A520M-K Micro ATX (mATX) AMD Motherboard | AMD AM4 Socket
SKU: 17913
Price: 270.00 MYR
Availability: InStock

Description

==== Technical Specs ====

CPU : Support AMD AM4 Socket for AMD Ryzen™ 5000 Series/ 5000 G-Series/ 4000 G-Series/ 3000 Series/ 3000 G-Series Desktop Processors

CHIPSET : AMD A520

MEMORY : 2 x DIMM, Max. 64GB, DDR4 4866(O.C)

GRAPHICS :

1 x D-Sub

1 x HDMI 2.1(4K@60HZ)

EXPANSION SLOT :

1 x PCIe 3.0 x16 (x16 mode)

2 x PCIe 3.0 x1

STORAGE :
1 x M.2 Socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes)
4 x SATA 6Gb/s port(s)

LAN : Realtek RTL8111H 1Gb Ethernet (ASUS LANGuard)

AUDIO : Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC

USB PORT SUPPORT :

Rear USB Port ( Total 6 )
– 4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
– 2 x USB 2.0 port(s)(2 x Type-A)

Front USB Port ( Total 6 )
– 2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
– 4 x USB 2.0 port(s)(4 x Type-A)

REAR I/O PORT :
1 x PS/2 keyboard/mouse combo port(s)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) port(s)
4 x USB 3.2 Gen 1 (blue) Type-A
2 x USB 2.0
3 x Audio jack(s)

FORM FACTOR : mATX Form Factor (Micro ATX)

3 YEARS WARRANTY
